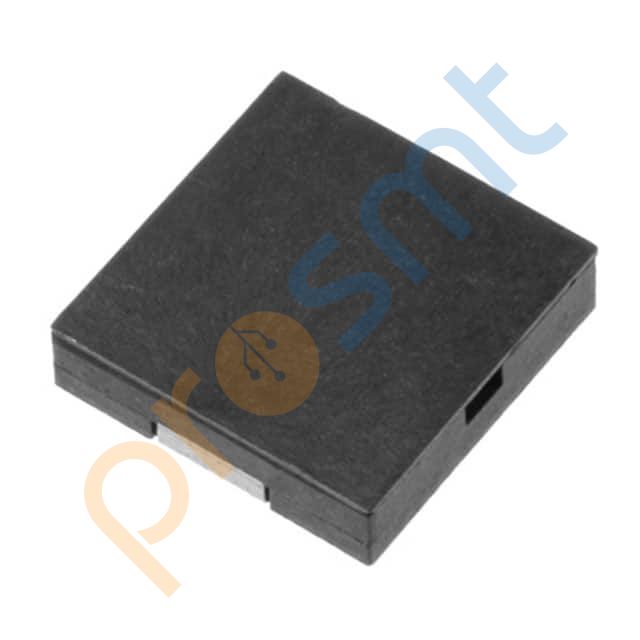

TP124003-2 PIEZO TRANSDUCER - ALARM, BUZZER, SIREN
0,00 TL +KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
TP124003-2 PIEZO TRANSDUCER
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | TP124003-2 |
| Mfr | DB Unlimited |
| Description | PIEZO TRANSDUCER |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 1 ~ 25V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current - Supply | 5mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
