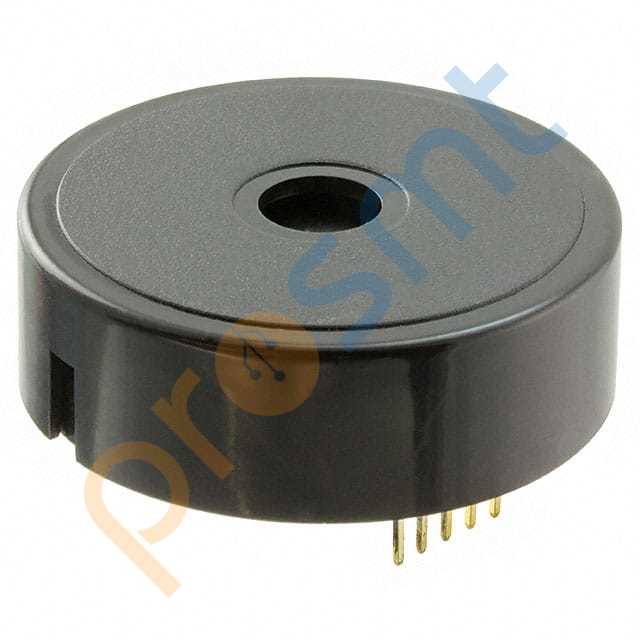

SBT5LMMXPC AUDIO PIEZO INDICATOR 3.3-5V TH - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Stok Kodu
K000404
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
SBT5LMMXPC AUDIO PIEZO INDICATOR 3.3-5V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SBT5LMMXPC |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 3.3-5V TH |
| Series | - |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 3.3 ~ 5V |
| Frequency | 2.075kHz |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 85dB @ 3.3V, 10cm |
| Current - Supply | 15 ~ 20mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.752" Dia (44.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Bu ürüne ilk yorumu siz yapın!
