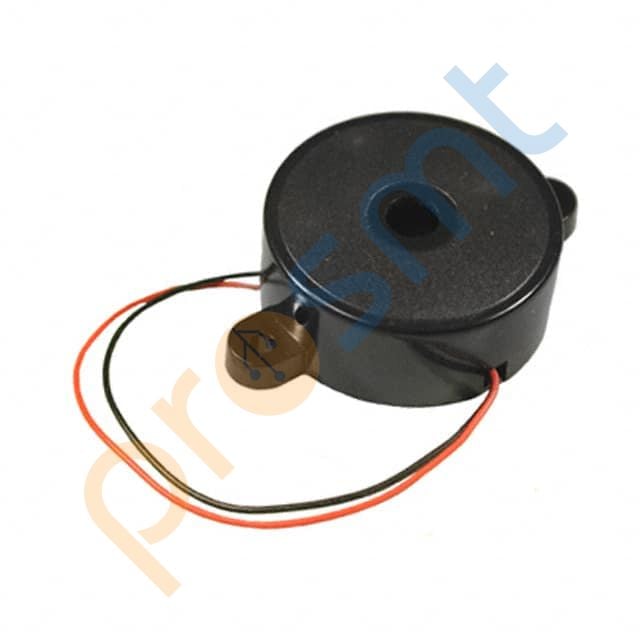

PT-2038WQ AUDIO PIEZO XDCR 1-30V CHASSIS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PT-2038WQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO XDCR 1-30V CHASSIS |
| Series | PT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm |
| Current - Supply | 5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
