PT-1704 AUDIO PIEZO TRANSDUCER 1-30V - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Marka
Stok Kodu
K000191
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

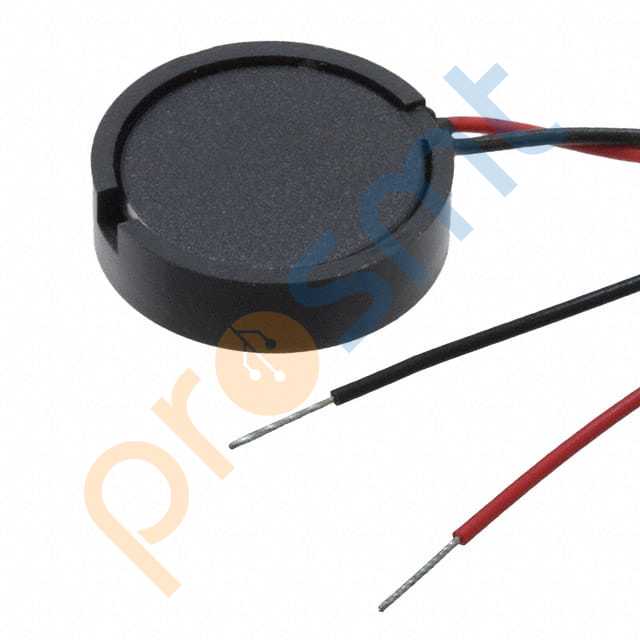

PT-1704 AUDIO PIEZO TRANSDUCER 1-30V
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PT-1704 |
| Mfr | Soberton Inc. |
| Description | AUDIO PIEZO TRANSDUCER 1-30V |
| Series | PT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current - Supply | 3mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Custom |
| Termination | Wire Leads |
| Size / Dimension | 0.669" Dia (17.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
