PMM-3738-VM1010-R MIC PIEZO MEMS ANALOG OMNI - MIKROFON | MIC
0,00 TL +KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

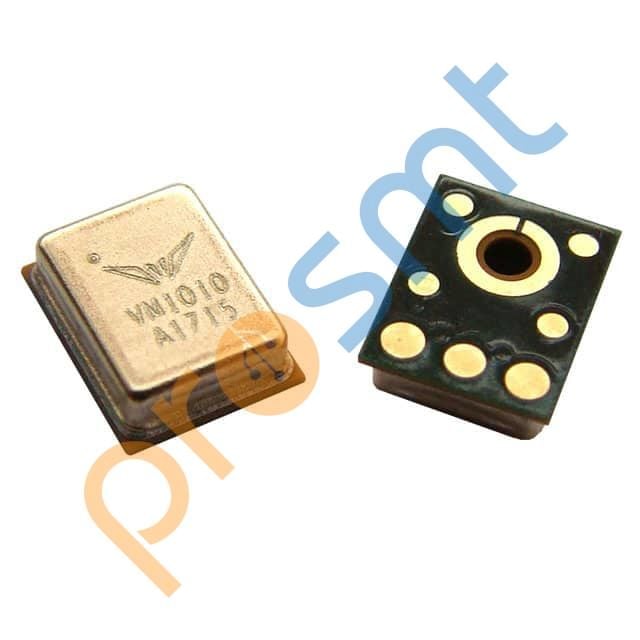

PMM-3738-VM1010-R MIC PIEZO MEMS ANALOG OMNI
Intervox mikrofon MEO-96PD-04-583. 20 Hz ~ 16.0 kHz, Circular, Electret Condenser, -58dB ±3dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PMM-3738-VM1010-R |
| Mfr | PUI Audio, Inc. |
| Description | MIC PIEZO MEMS ANALOG OMNI |
| Series | Vesper |
| Type | Piezo MEMS |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10.0 kHz |
| Sensitivity | -38dB ±3dB @ 94dB SPL |
| S/N Ratio | 60dB |
| Impedance | 700 Ohms |
| Voltage - Rated | 1.8 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 110 µA |
| Port Location | Bottom |
| Ratings | IP50 - Dust Protection |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
