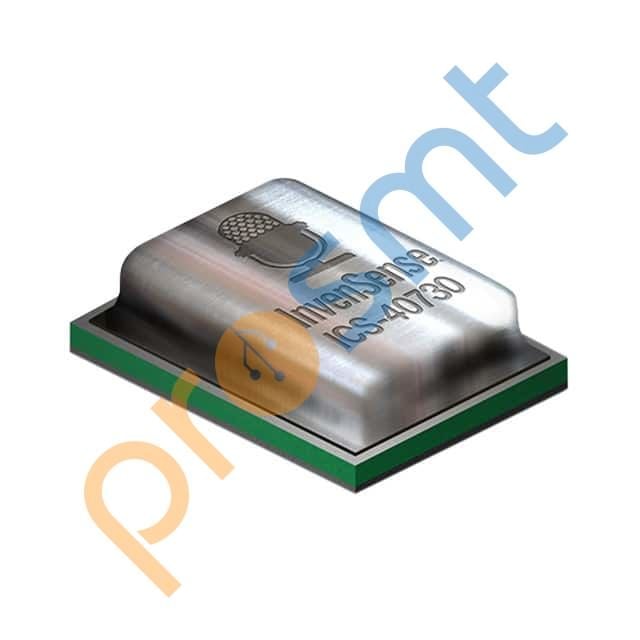

ICS-40730 MICROPHONE MEMS ANALOG NC -32DB
CUI Devices mikrofon CMC-9745-L100. 100 Hz ~ 12.0 kHz, Circular, Electret Condenser, -37dB ±3dB @ 94dB SPL, Unidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ICS-40730 |
| Mfr | TDK InvenSense |
| Description | MICROPHONE MEMS ANALOG NC -32DB |
| Series | ICS-40730 |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 25 Hz ~ 20.0 kHz |
| Sensitivity | -32dB ±2dB @ 124dB SPL |
| S/N Ratio | 74dB |
| Impedance | 750 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 3.63 V |
| Current - Supply | 285 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.186" L x 0.148" W (4.72mm x 3.76mm) |
| Height (Max) | 0.142" (3.60mm) |
| Shape | Rectangular |
