BRP4535S-24-CD PIEZO ALARM, PANEL MOUNT - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Stok Kodu
K000509
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

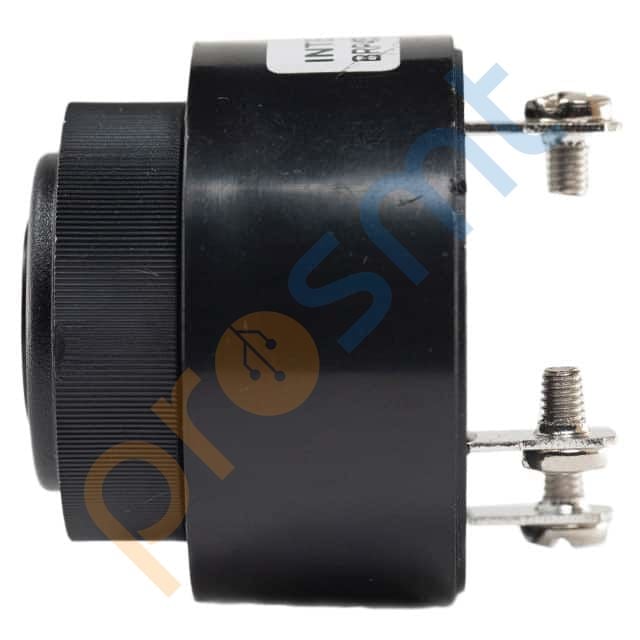

BRP4535S-24-CD PIEZO ALARM, PANEL MOUNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | BRP4535S-24-CD |
| Mfr | International Components Corp. |
| Description | PIEZO ALARM, PANEL MOUNT |
| Series | BRP4535S |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 4 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Dual Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 24V, 30cm |
| Current - Supply | 30 ~ 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) |
| Size / Dimension | 1.713" Dia (43.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
