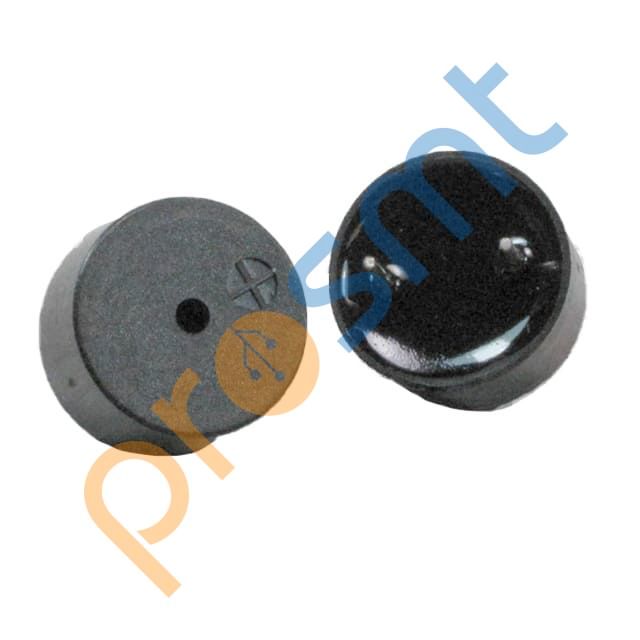

BRP1408P-12-CS PIEZO ALARM W/INTERNAL CIRCUIT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | BRP1408P-12-CS |
| Mfr | International Components Corp. |
| Description | PIEZO ALARM W/INTERNAL CIRCUIT |
| Series | - |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 16V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 10V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543" Dia (13.80mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
