ASI301Q AUDIO MAGNETIC IND 4-7V SMD - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Stok Kodu
K000134
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

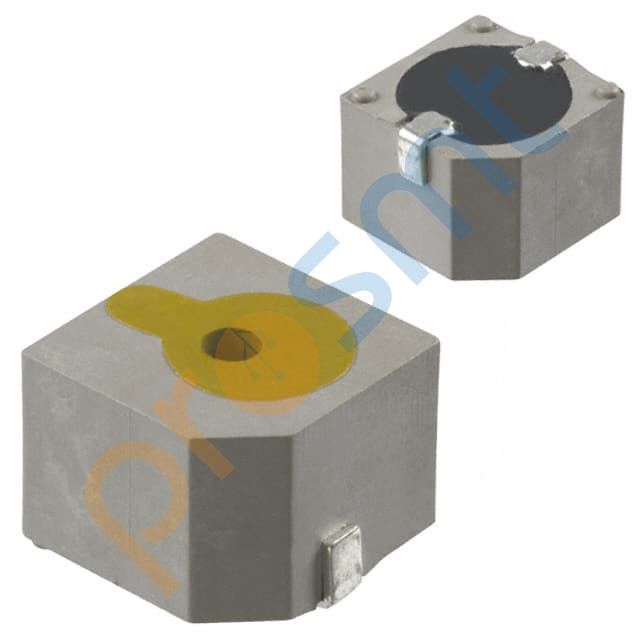

ASI301Q AUDIO MAGNETIC IND 4-7V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ASI301Q |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO MAGNETIC IND 4-7V SMD |
| Series | ASI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 7V |
| Frequency | 2.4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.496" L x 0.496" W (12.60mm x 12.60mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
