ANM-5254L-R MIC COND ANALOG NC -54DB 9.7MM D - MIKROFON | MIC
0,00 TL +KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

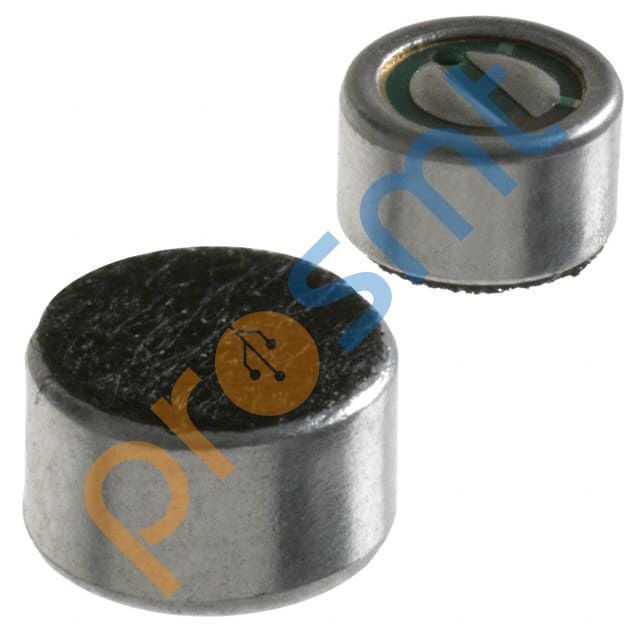

ANM-5254L-R MIC COND ANALOG NC -54DB 9.7MM D
CUI Devices mikrofon CMC-2242PBL-A. 100 Hz ~ 20.0 kHz, Circular, Electret Condenser, -42dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ANM-5254L-R |
| Mfr | PUI Audio, Inc. |
| Description | MIC COND ANALOG NC -54DB 9.7MM D |
| Series | ANM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Noise Cancelling |
| Frequency Range | 50 Hz ~ 16.0 kHz |
| Sensitivity | -54dB ±4dB |
| S/N Ratio | 60dB |
| Impedance | 680 Ohms |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.5 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.213" (5.40mm) |
| Shape | Circular |
