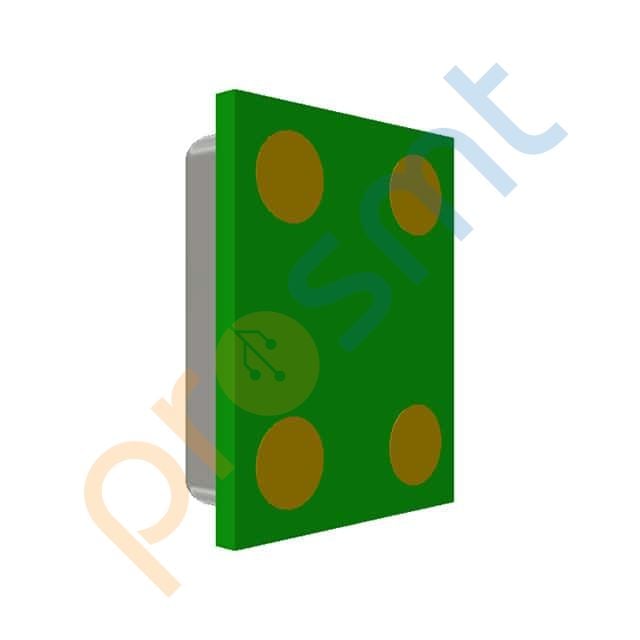

AMM-3742-T-R MICROPHONE MEMS ANALOG OMNI
Knowles mikrofon SPW0690LM4H-1. 20 Hz ~ 10.0 kHz, Rectangular, MEMS (Silicon), -41dB ±1dB @ 94dB SPL, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AMM-3742-T-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE MEMS ANALOG OMNI |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 20.0 kHz |
| Sensitivity | -42dB ±1dB |
| S/N Ratio | 58dB |
| Impedance | 300 Ohms |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
