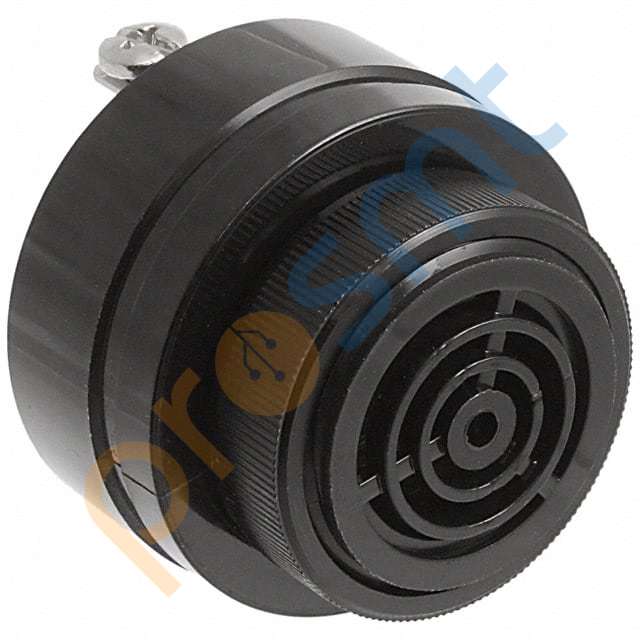

SC628AHR AUDIO PIEZO IND 6-28V PNL MNT - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Stok Kodu
K000420
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
SC628AHR AUDIO PIEZO IND 6-28V PNL MNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SC628AHR |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO IND 6-28V PNL MNT |
| Series | SC |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC, DC |
| Voltage - Rated | - |
| Voltage Range | 6 ~ 28V |
| Frequency | 4.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 68dB @ 7.5V, 61cm |
| Current - Supply | 4 ~ 16mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.692" Dia (42.98mm) |
| Height - Seated (Max) | 1.399" (35.54mm) |
