SC616CP AUDIO PIEZO IND 6-16V PNL MNT - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Stok Kodu
K000325
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

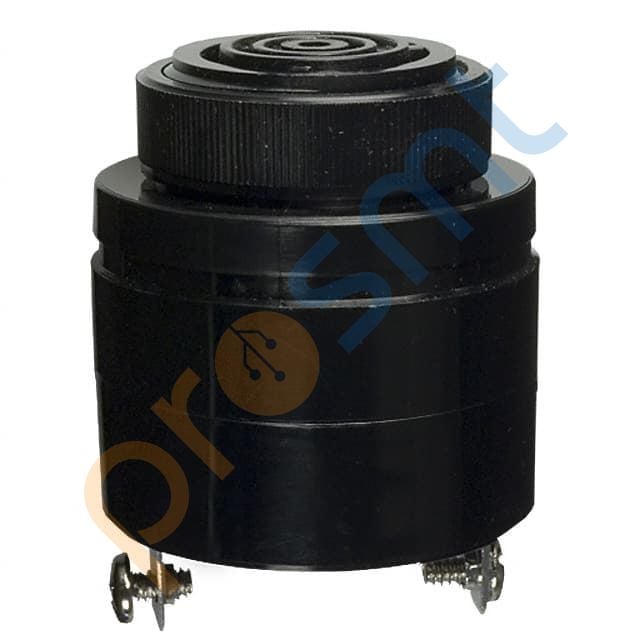

SC616CP AUDIO PIEZO IND 6-16V PNL MNT
Özellik | Değer |
---|---|
Datasheet | PDF Datasheet indir |
Mfr Part # | SC616CP |
Mfr | Mallory Sonalert Products Inc. |
Description | AUDIO PIEZO IND 6-16V PNL MNT |
Series | SC |
Driver Circuitry | Indicator, Internally Driven |
Input Type | DC |
Voltage - Rated | - |
Voltage Range | 6 ~ 16V |
Frequency | 2.9kHz |
Technology | Piezo |
Operating Mode | Chime |
Duration | 0.3 ~ 2 PPS |
Sound Pressure Level (SPL) | 68dB @ 6V, 61cm |
Current - Supply | 6 ~ 16mA |
Port Location | Top |
Operating Temperature | -30°C ~ 65°C |
Approval Agency | UL |
Ratings | - |
Ingress Protection | - |
Mounting Type | Panel Mount |
Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
Size / Dimension | 1.687" Dia (42.85mm) |
Height - Seated (Max) | 1.946" (49.43mm) |
